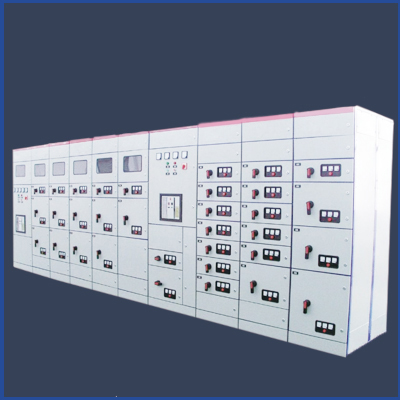

The low-voltage cabinet is an authorized cabinet, which means the low-voltage switchgear product produced by ABB authorized cabinet electrical complete plant. The whole mns2.0 low-voltage cabinet adopts ABB's advanced technology and is designed according to the requirements of the actual site owner. Anhui Derun Electric has been authorized to produce mns2.0 low-voltage cabinet for more than 10 years. Before each production of mns2.0 low-voltage cabinet, a small production meeting will be held to convey the details and key points of each batch of products to the assemblers. I'll let you know.

一、當殼體生產完時我們要進行殼體的檢查，包括噴涂、打磨、殼體厚度、殼體各配件是否完好等。

1、 When the shell is produced, we shall conduct a comprehensive inspection of the shell, including spraying, grinding, shell thickness, whether all accessories of the shell are intact, etc.

殼體檢查

Shell inspection

二、當殼體檢查完后，我們就開始領每臺柜子的元器件準備裝配了， 在裝配之前，我們還要對各元器件進行二次檢查（收貨時次檢查），看是否有不合格的產品。

2、 After the physical examination of the shell, we begin to get the components of each cabinet ready for assembly. Before assembly, we also need to conduct a secondary inspection on the components (the first inspection when receiving the goods) to see whether there are unqualified products.

元器件安裝前檢查

Pre installation inspection of components

三、將每一個元器件按照?qǐng)D紙的步驟一步一步裝配到MNS2.0開關柜中。

3、 Assemble each component into mns2.0 switchgear step by step according to the steps of the drawing.

主元器件已裝配到柜內

The main components have been assembled into the cabinet

四、不同的柜型有不同的裝配工藝，比較難裝配的是抽屜柜中的每一個抽屜，因?yàn)槌閷瞎穹趾芏鄦卧?，每一個單元的尺寸不同，元器件大小也不同。這就需要裝配工有一定的生產工藝水平了。

4、 Different cabinet types have different assembly processes. It is more difficult to assemble each drawer in the drawer cabinet, because the drawer cabinet is divided into many units. The size of each unit is different, and the size of components is also different. This requires the assembler to have a certain level of production technology.

抽屜單元

Drawer unit

五、裝配完成后，我們會有車間檢驗員對每臺柜子進行檢查，包括螺絲是否擰緊，一批次開關柜內的接線是否一致；機械聯鎖是否正常、抽屜是否方便關合；指示燈、按鈕和導線顏色是否符合規范；銘牌、警告標志內容等位置正確等。

5、 After the assembly, we will have workshop inspectors conduct all-round inspection on each cabinet, including whether the screws are tightened and whether the wiring in a batch of switchgear is consistent; Whether the mechanical interlocking is normal and whether the drawer is easy to close; Whether the colors of indicator lights, buttons and wires meet the specifications; The contents of nameplates and warning signs are correct.

整柜檢查

Whole cabinet inspection

六、后一步就是出廠前調試了，此項工作由售后工程師們完成。根據國標要求，進行每一項出廠前試驗檢測。包括外觀試驗（電氣間隙、爬電距離、絕緣電阻測試等）；通電試驗，按電氣原理圖要求，接通設計規定的電源模擬動作，進行出廠前各項測試。各項要求都符合后，方可打包出廠。保證每一批次得潤電氣出廠的MNS2.0低壓柜到達項目現場安裝完成后通過現場簡單的運行調試就可以使用了。

Six, the last step is debugging before leaving the factory, which is done by customer service engineers. Carry out each pre delivery test according to the requirements of national standards. Including appearance test (electrical clearance, creepage distance, insulation resistance test, etc.); Power on test: according to the requirements of electrical schematic diagram, connect the power supply specified in the design, simulate the action, and carry out various tests before delivery. After all requirements are met, it can be packaged and delivered. Ensure that each batch of mns2.0 low-voltage cabinets delivered by Derun electric arrive at the project site. After installation, they can be used through simple on-site operation and commissioning.
