MNS 低壓抽屜柜作為配電系統中的關鍵設備，在山東工業企業、建筑樓宇等場景中應用廣泛，其模塊化設計與靈活的組合方式，能滿足不同配電需求，同時兼顧性與運維便利性。山東地區的 MNS 低壓抽屜柜在制造過程中，結合本地工業特點與氣候條件進行優化，形成了適應高負荷、多粉塵環境的產品特性，成為電力分配與控制的重要載體。

　　As a key equipment in the power distribution system, MNS low-voltage drawer cabinets are widely used in industrial enterprises, buildings and other scenarios in Shandong. Their modular design and flexible combination can meet different power distribution needs while also considering safety and operational convenience. In the manufacturing process of MNS low-voltage drawer cabinets in Shandong region, optimization is carried out based on local industrial characteristics and climate conditions, forming product characteristics that are suitable for high load and dusty environments, and becoming an important carrier for power distribution and control.

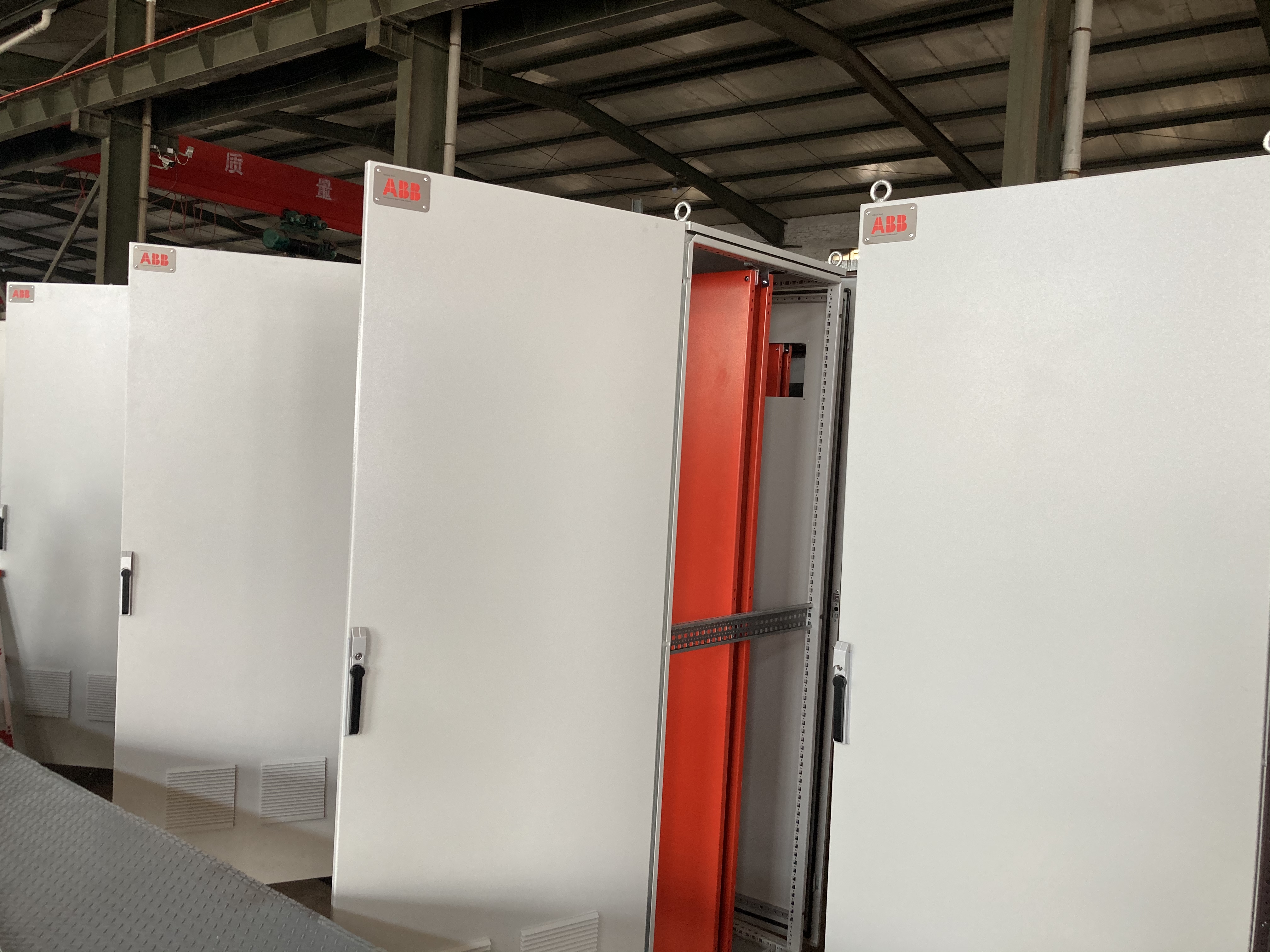

　　MNS 低壓抽屜柜的結構設計以模塊化為核心，由柜體、抽屜單元、母線系統及功能組件構成。柜體采用型鋼框架與覆板組合結構，具備良好的機械強度與防護性能（防護等級通常達到 IP30 及以上），能有效阻擋外部粉塵與水汽侵入。抽屜單元是核心功能模塊，按不同電流等級（如 16A、63A、250A、630A）設計，每個抽屜對應一組電氣元件（如斷路器、接觸器、繼電器），可獨立抽出或插入，便于單獨檢修而不影響其他回路。母線系統采用封閉母線槽，分為水平母線與垂直母線，通過絕緣支撐固定，確保載流能力與絕緣性能，山東地區生產的柜體多采用加厚銅排（或鋁排），適應本地夏季高溫環境下的大電流負荷需求。

　　The structural design of MNS low-voltage drawer cabinet is based on modularization, consisting of cabinet body, drawer unit, busbar system and functional components. The cabinet adopts a combination structure of steel frame and cladding, which has good mechanical strength and protective performance (protection level usually reaches IP30 or above), and can effectively block the invasion of external dust and water vapor. The drawer unit is the core functional module designed according to different current levels (such as 16A, 63A, 250A, 630A). Each drawer corresponds to a set of electrical components (such as circuit breakers, contactors, relays), which can be independently extracted or inserted for easy maintenance without affecting other circuits. The busbar system adopts enclosed busbar ducts, divided into horizontal busbars and vertical busbars, fixed by insulation supports to ensure current carrying capacity and insulation performance. Cabinets produced in Shandong region mostly use thickened copper bars (or aluminum bars) to meet the high current load requirements in the local summer high temperature environment.

　　功能特性上，MNS 低壓抽屜柜注重性與靈活性的平衡。抽屜單元具備機械聯鎖功能，只有在分閘狀態下才能抽出，防止帶負荷操作引發電弧事故；柜門與抽屜之間的聯鎖裝置，確保柜門關閉時抽屜才能合閘，避免人員接觸帶電部件。抽屜面板設有狀態指示（分閘、合閘、試驗位置），操作人員可直觀判斷運行狀態，試驗位置允許抽屜在不接通主電路的情況下進行動作測試，方便調試與故障排查。對于山東化工、冶金等行業的復雜配電場景，柜體可靈活組合不同功能單元（如動力回路、照明回路、電容補償回路），通過標準化接口實現快速擴展，滿足生產線升級或負荷增加的需求。

　　In terms of functional characteristics, MNS low-voltage drawer cabinets emphasize a balance between safety and flexibility. The drawer unit has mechanical interlocking function, which can only be pulled out in the open state to prevent arc accidents caused by load operation; The interlocking device between the cabinet door and the drawer ensures that the drawer can only be closed when the cabinet door is closed, avoiding personnel contact with live parts. The drawer panel is equipped with status indicators (open, close, test position), allowing operators to intuitively judge the operating status. The test position allows the drawer to perform action testing without connecting the main circuit, facilitating debugging and troubleshooting. For complex power distribution scenarios in industries such as chemical and metallurgical industries in Shandong, cabinets can flexibly combine different functional units (such as power circuits, lighting circuits, capacitor compensation circuits), and achieve rapid expansion through standardized interfaces to meet the needs of production line upgrades or load increases.

　　在山東地區的應用中，MNS 低壓抽屜柜表現出較強的環境適應性。針對北方冬季低溫特點，柜內電氣元件選用寬溫型產品，確保在 - 5℃ 40℃環境下穩定運行；對于粉塵較多的工業場所（如水泥廠、機械廠），柜體采用密封性能優化設計，抽屜與柜體接觸部位加裝耐磨損密封條，減少粉塵進入。在潮濕的沿海地區（如山東半島），柜體表面經磷化處理后噴涂防腐涂層，母線接頭處采用防潮絕緣材料，降低受潮短路風險。此外，部分定制化柜體增加了散熱結構（如頂部散熱孔、內部導流板），適應夏季車間高溫環境下的連續運行，避免元件因過熱跳閘。

　　In the application in Shandong region, MNS low-voltage drawer cabinets exhibit strong environmental adaptability. In response to the low temperature characteristics in northern winter, wide temperature electrical components are selected in the cabinet to ensure stable operation in an environment ranging from -5 ℃ to 40 ℃; For industrial sites with high levels of dust (such as cement plants and machinery factories), cabinet bodies are designed with optimized sealing performance, and wear-resistant sealing strips are installed at the contact points between drawers and cabinets to reduce dust entry. In humid coastal areas such as the Shandong Peninsula, the surface of the cabinet is treated with phosphating and sprayed with anti-corrosion coating. Moisture resistant insulation materials are used at the busbar joints to reduce the risk of moisture induced short circuits. In addition, some customized cabinets have added heat dissipation structures (such as top heat dissipation holes and internal flow deflectors) to adapt to continuous operation in the high-temperature environment of the workshop in summer, avoiding component tripping due to overheating.

　　安裝與運維需遵循規范以保障長期穩定運行。安裝前需檢查柜體垂直度與水平度，相鄰柜體連接牢固，接地系統可靠（接地電阻不超過規定值），母線連接時需按力矩要求緊固螺栓，防止接觸不良發熱。抽屜單元安裝需確保插拔順暢，定位準確，避免因機械卡澀影響操作。日常運維中，需定期清潔柜體內部（尤其是母線槽與抽屜軌道），粉塵與雜物；檢查抽屜聯鎖裝置是否靈敏，觸頭有無燒蝕痕跡；測量絕緣電阻（相間、相對地），確保符合標準。山東地區企業多結合生產間隙進行預防性維護，在冬季來臨前檢查加熱裝置（如柜內加熱器），防止凝露導致絕緣下降。

　　Installation and operation must follow standards to ensure long-term stable operation. Before installation, it is necessary to check the verticality and levelness of the cabinet, ensure that adjacent cabinets are firmly connected, and that the grounding system is reliable (grounding resistance does not exceed the specified value). When connecting the busbar, bolts should be tightened according to torque requirements to prevent poor contact and heating. The installation of drawer units should ensure smooth insertion and extraction, accurate positioning, and avoid mechanical jamming affecting operation. In daily operation and maintenance, it is necessary to regularly clean the interior of the cabinet (especially the bus duct and drawer track), remove dust and debris; Check whether the drawer interlocking device is sensitive and whether there are burn marks on the contacts; Measure insulation resistance (phase to phase, relative to ground) to ensure compliance with safety standards. Enterprises in Shandong region often conduct preventive maintenance based on production gaps, checking heating and dehumidification devices (such as cabinet heaters) before winter to prevent insulation degradation caused by condensation.
